Every artist needs a canvas. Obviously.
Paste this into your sketch.js:
function setup() {
createCanvas(640, 480);
}
function draw() {
fill(225, 0, 150);
noStroke();
ellipse(mouseX, mouseY, 40, 40);

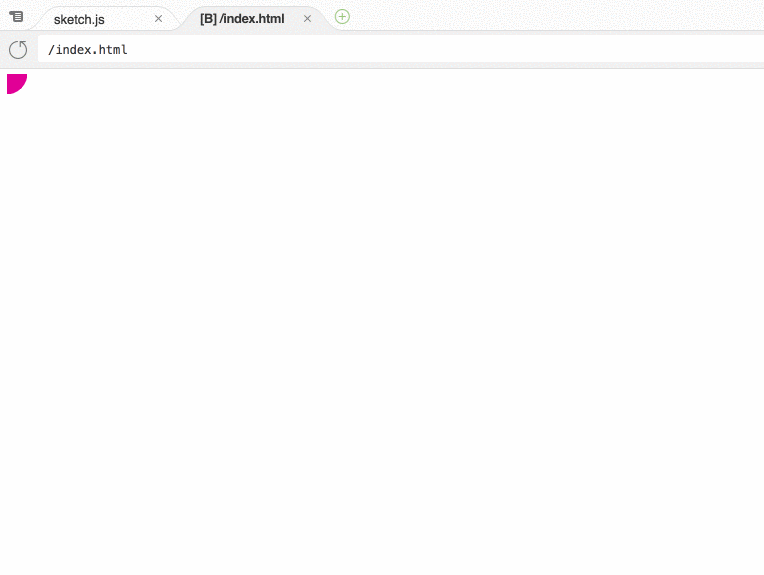

}Preview your index.html and check out what happens when you move your mouse!
All the words you see above such as createCanvas, fill, or ellipse are
special words coming from, you guessed it, the p5.js library. They need to be written
exactly as shown above with exactly the same capitalization.
Don't take my word for it, replace the word createCanvas with createcanvas or
fill with a random word like zebra, what happens now when you preview your code.... nothing. If it ever happens
that you are writing some code and then you don't see what you expect or everything is broken
( **SPOILER ALERT** this will definitely happen, it's totally normal) check that you don't have any small typos
or spelling mistakes.
The technical term for these special words is functions.
A function is a command or instruction written in code. When we want to give a command or tell our computer to do something we call a function. The syntax for calling a function is to write the name of the function followed by a set of parentheses like so myFunction(). Sometimes you may write more inside of the parentheses, we'll cover that really soon.
ellipse, for example, is a function another developer wrote that we can call on to say "hey computer, draw an ellipse".
You probably noticed the word function in the code above before setup and draw. These are special functions that p5.js needs us to define. They are special because p5 will call on them for us automatically
Think back to flip-books you may have made as a child.
You can think of setup as a function that provides information like how big each page in your flip-book should be or how fast one should flip through. When a project has the p5.js library loaded into it, setup is called one time when the page loads
draw also gets called automatically, though not just once. It gets called repeatedly over and over again. You can think of draw as saying what should go on each individual page of your flip-book. In our first code example, we tell draw to place an ellipse on the screen over and over again. It is the accumulation of all these ellipses one after the next that make it look like we are drawing a continuous pink line.
Inside of setup and draw is where we will write code and call on other functions to make things show up in the browser. "Inside" of a function means between the opening curly brace { and ending curly brace } you see after both functions. It may seem like a minor thing, but if you don't put your code in the correct place inside of setup or draw, or accidentally delete a }, JavaScript won't know how to correctly interpret your code.
As we said, calling a function is giving your computer a command to do something. Computer's follow the instructions you give them in the order you give them. Let's look more in depth at some of the instructions we've seen:
A well named function has a name that describes to other programmers like you exactly what it does.
A function named createCanvas, not surprisingly, creates the canvas that the rest of our shapes will be drawn on.
It seems like creating a canvas is something that we would want to happen once at
the beginning of our project. Given that information do you think we should call
the createCanvas function inside setup or inside draw?
If you guessed setup you are correct! Whatever code is inside setup will get run
one time when the page loads-- just what we need.
In the code above there are some numbers after the name of the function:
createCanvas(640, 480);What's going on there? Those numbers separated by commas are called arguments to a function.
It's kind of like when we say createCanvas the computer is like,
"Alright, I will go ahead and make a new canvas for you, but I need a little more
info so I have a few questions."
"What should the width of the canvas be?"
"What should the height of the canvas be?"
The way we supply that information to our friendly computer is with arguments.
In between the parentheses we tell it the width and the height in pixels. So,
createCanvas(250, 1000); would create a narrow but tall canvas 250 pixels
across and 1000 pixels tall.
Programmers will say that they give or pass arguments to a function.
The ellipse function draws an ellipse shape on the canvas.
We've seen the ellipse function called with 4 arguments:
ellipse(50, 50, 80, 80);The third and fourth arguments determine the width and height of the ellipse. If those values are the same you'll see a perfect circle, otherwise you'll have a squashed or elongated circle in some way. Playing around with it in cloud9 is encouraged :).
So we know what some of the arguments to ellipse are:
ellipse(?, ?, widthOfShape, heightOfShape).
I bet you could guess what information the first and second arguments supply. Think about what other questions your computer might have about how to draw a shape on the screen.
We've answered "How big should the shape be?"
But we still have not answered the question "Where should I draw the shape?". That's exactly
what the first and second arguments tell your computer! Where to draw the shape
using x and y coordinates on the canvas.
There's one key thing to keep in mind when describing x and y coordinates to a
p5 function. From math class you are probably familiar with using an (x,y) coordinate system. (0,0) would be in the bottom left,
the x axis increases to the right and the y axis increases upwardly.
The p5.js coordinate system is sort of reversed. (0,0) is actually the top left corner.
The x axis still increases rightward, but the y axis gets bigger in a
downward direction.
Ok, rect is a function we have never seen before. Nothing to fear here though, it works just like any other function. We call it and give it arguments.
rect(50, 50, 80, 80);Try it, instead of a circle on the screen you'll see a square! rect works exactly like ellipse except it draws rectangular shapes! The arguments even specify the same information:
rect(x coordinate, y coordinate, width of rectangle, height of rectangle);Play around with rect. One thing to keep in mind is that the 1st and 2nd arguments, the x and y coordinates, determine where the top left corner of the rectangle will be placed.
This seems like a ton of information.
Who can remember if the order of the arguments to createCanvas
is supposed to be (width, height) or was it (height, width)? Or let's say you want to draw a square. Ok great, you know what function to use... wait-- was the function called rect or rectangle?
Luckily p5 has amazing documentation that can be found here.
Code documentation shows and describes how functions are intended to be used. Let's look at the documentation for the line() function. If you open the link above you'll find it under the heading "Shapes" in the section called "2D Primitives". Otherwise this link will take you directly there

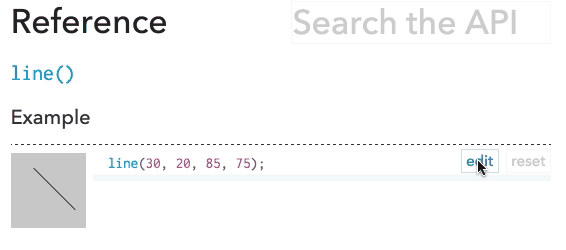

The Example section is a fully interactive window that allows you to change the arguments and see the results in real time. Try it!
The next section provides an english description and any additional information. For line it reads:
Draws a line (a direct path between two points) to the screen. The version of line() with four parameters draws the line in 2D. To color a line, use the stroke() function. A line cannot be filled, therefore the fill() function will not affect the color of a line. 2D lines are drawn with a width of one pixel by default, but this can be changed with the strokeWeight() function.
In the Example section of the documentation we saw the line function being passed number vales: line(30, 20, 85, 75);.

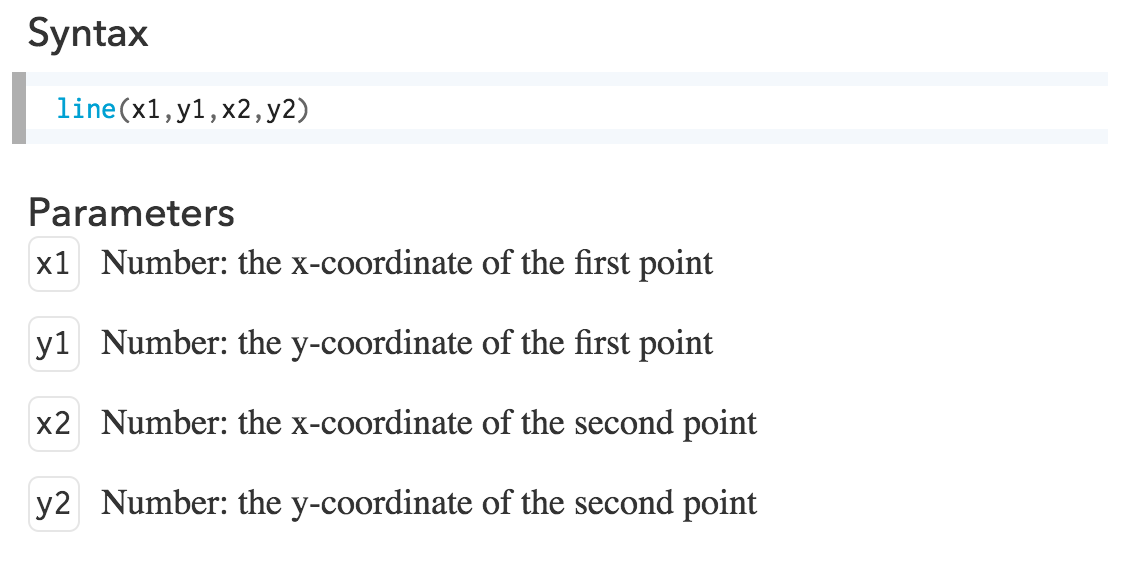

Where those numbers represent actual data, here in the Syntax and Parameters sections the documentation shows in a more general way how to use the function. We can see that whatever number we give as the first argument will be the x value for the first point and so on...
Programmers look up documentation all the time. Basically, programming is challenging, and programmers want to spend their time and energy focusing on the challenging parts. So for things that are pure memorization like the order of arguments and names of functions, you can let the documentation remember for you.
Referring to the documentation doesn't mean you are doing something wrong or aren't getting the hang of things. In fact, other developers would be impressed because it proves you are already learning how to independently teach yourself!
In a field where new technologies are always coming out and existing ones constantly change, that is an incredibly important skill.
-
Draw 5 shapes or lines on the canvas using a minimum of 3 different functions. Make it so that none of these 5 shapes touch each other and all fit entirely on the canvas
-
Change your code so each shape touches or overlaps at least one other shape.
-
Follow along with the documentation to do something you've never done before.
- Some ideas:
- Try a brand new function such as
quadortriangle. - Look at the documentation of
rectto see how to make a rectangle with rounded edges
- Can you Build the Olympic Rings in Code?
