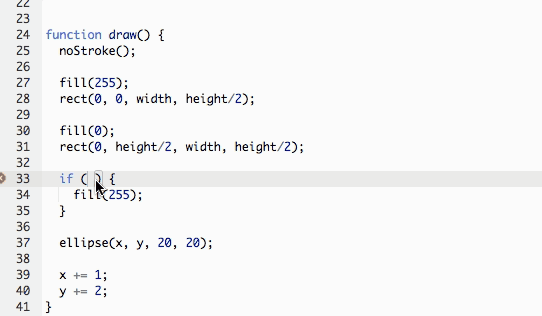

Here's the code we left off with last time
var x = 1;
var y = 1;
function setup() {
createCanvas(600, 200);
}
function draw() {
noStroke();
fill(255);
rect(0, 0, width, height/2);
fill(0);
rect(0, height/2, width, height/2);
if (y > height/2 ) {
fill(255);
} else {
fill(0);
}
ellipse(x, y, 20, 20);
x += 1;
y += 2;
}This results in a ball that changes color, but doesn't bounce back when it hits the edge of the canvas. Instead, it just continues off of it.
Try to put the logic into words for bouncing off the bottom edge and reversing direction.
if the coordinates of the ball are
greater than the height of the canvas,
it's y coordinate should start to decrease each time draw is called
A decreasing y value means it would be heading back up toward the top. Our first attempt might be something like this,
function draw() {
//... all our code
x += 1;
y += 2;
if (y > height) {
y -= 2;
}
}Look at what that does:

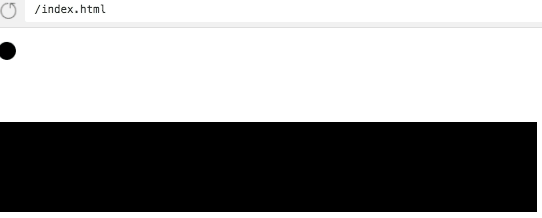

Can you figure out why the ball gets stuck? Try to think like your computer, start at the top and read down.
When the ball makes it the bottom of the canvas:
- The conditional is
trueandydecreases by2. - That's the end of the function, so the next thing that happens is
drawgets called again. - All the code gets read, it comes to the line
y += 2andygets incremented. - This makes
y > heightbetrueagain when it reaches the conditional. - So
yis then decremented by2. - Then
drawis called again.
The value continues to have 2 added and then subtracted, meaning no change in it's y coordinate, until it is off the canvas.
Clearly not what we want.
We're thinking through the process of how our computer reads the code, in what order, and what decisions it makes. That process is called control flow. It's often helpful to thoughtfully consider your program's control flow when working on projects.
The problem here stems from the fact that we need to do more than y -= 2 one time. After the ball reaches the edge, every call to draw should further decrement y until the ball hits the top. Then we should start incrementing with += again.
What if instead we incremented with += every single call to draw. Only sometimes we incremented with a negative number. The value we increment with can flip from negative to positive and since adding a negative number is the same as subtracting we should be all good! To do this, we'll make an additional variable called ySpeed.
//... previous code
var ySpeed = 2;
function draw() {
//... previous code
if (y > height) {
ySpeed = -2;
}
y += ySpeed;
}

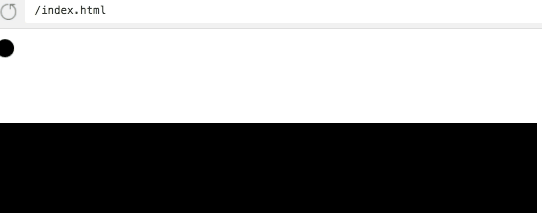

Amazing! The first bounce. It makes sense that it only bounces on the bottom since we never wrote the logic for bouncing off the top.
One important thing to point out, notice that our new conditional comes before the line where we increment y. The incrementing is done outside of any conditional, it happens every single time draw is called. Therefore when we increment we must already have flipped the number to negative. That's why it has to come first.
This logic is covered:
if the coordinates of the ball are
greater than the height of the canvas,
it's y coordinate should start to decrease each time draw is called
Next we may want to add:
if the coordinates of the ball are
less than the 0 (the top of the canvas),
it's y coordinate should start to increase again each time draw is called
Since we would never want both of these things to happen at once, only one or the other, we can use an else if.
Change the conditional to:
if (y > height) {
ySpeed = -2;
} else if (y < 0) {
ySpeed = 2;
}That should basically work-- Congrats!
An if statement can be followed by any number of else ifs. The order of them is very important. The computer will go through them from top to bottom and find the first one that matches (evaluates to true).
Consider this code:
if (x > 10) {
print(10);
} else if ( x > 5) {
print(5);
} else if ( x > 0) {
print(0);
}Imagine you are the computer running this code and I told you the value of x was 12. You would start at the top and find the first if that is true. What value would you print if x = 12?
10. Perfect.
Now what if x = 6?
5, pretty easy!
Ok, let's change the code you are running to this:
if (x > 0) {
print(0);
} else if ( x > 5) {
print(5);
} else if ( x > 10) {
print(10);
}A small change, you may think, but now x could be any positive number, 12, 6, 1, 100 and you would print 0 every time.
There is no way for the lines print(5); or print(10); to get read. The first if catches all positive numbers.
See why the order of your else ifs is important?
If you want a default case, some code that should be run only if none of the if's are true. You can put an else at the bottom to catch any input that doesn't match.
Though our code above works, I am not totally satisfied with this
if (y > height) {
ySpeed = -2;
} else if (y < 0) {
ySpeed = 2;
}Notice that the value of ySpeed remains the same (it's always the number 2) only the sign (+ or -) flips or toggles back and forth. Can't we toggle the sign of a number by multiplying by -1 ?
I want code that looks like this:
if (the ball is past the bottom OR past the top) {
ySpeed = ySpeed * -1;
}
y += ySpeed;
See that capitalized 'OR', we can write that in code with two pipe symbols ||. This key is generally above the enter button on your keyboard.
'OR' is called a Logical Operator,
another Logical Operator is 'AND', we write that in code with two ampersands like so &&. ('ampersand' if the name of the '&' symbol, if you didn't know).
The finished refactored code looks like:
if (y > height || y < 0) {
ySpeed = ySpeed * -1;
}I think this is more clear. It's how I would explain the problem to someone in words. "If the ball goes below the bottom or above the top, toggle the direction".
Nice job!

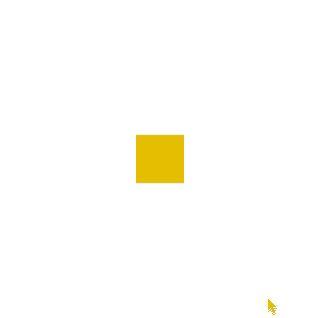

- Draw a rectangle in the middle of the canvas, if the mouse is in the top half of the canvas it should be one color, if the mouse is in the bottom half it should be a second color.
Use if and else.

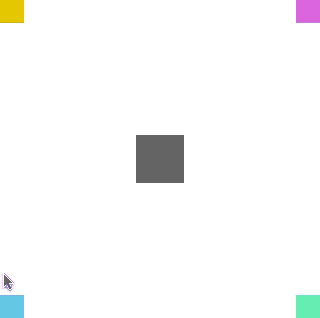

- Next, draw 4 different colored smaller squares in each corner. When the mouse is hovering over any of them, the center square should be the same color as the square. If you are not hovering over any squares the middle square should be gray.
Get one square working at a time and test that it works. That way you won't get overwhelmed.
Use if, else if, else and the && logical operator.

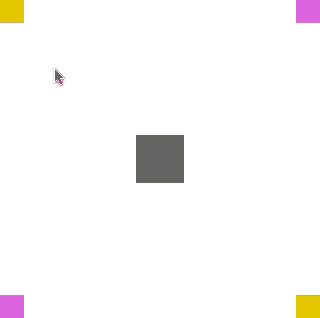

- Change your code so that the two opposite smaller squares are the same color
Try to use only 1 else if. To do this you will have to use the || logical operator. You can use parentheses just like you would in math to group statements together (one conditional statement) || (another conditional statement)
